V-Valley Flashing - 0.40mm x 3m - Red
SKU
staging-FL0045.4.3-1
R461.24
* We shall endeavour to have your order delivered or collected within 14 days. The lead time may however vary due to the nature of the product, availability of the product and logistical factors.
Add to Compare
Share via:
Product Description
Flashings and closures are made for particular applications and locations on the roof, with variations to suit the specific profile being used. Supa-Roof sells a range of standard flashings which are aesthetically pleasing as well as made to fit role which necessitates that they are designed for the structure in question.

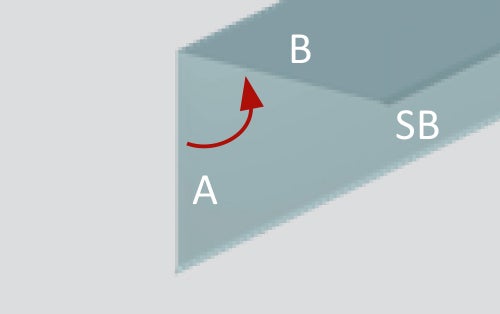

| Apex Flashing | Dimensions | 330 x 330 |
|---|---|---|
 |
Angle | Calculation: 180° Roof Pitch (1.5 x Roof pitch) |
| Girth | 660 | |
| Use with | Broad flute clusures + poly closures and sliding brackets (F10, 2-piece slider) |
| Barge Flashing | Dimensions |
330 x 292 x 38 | SB² = 38mm at 90° 330 x 282 x 48 | SB² = 48mm at 90° |
|---|---|---|
 |
Angle | 90° |
| Girth | 660 | |
| Use with | Sliding brackets (F10 or clip-on) |
| Ridge Flashing | Dimensions | 330 x 330 |
|---|---|---|
 |
Angle | Calculation: 180° Roof Pitch (2 x Roof pitch) |
| Girth | 660 | |
| Use with | Broad flute clusures + poly closures and sliding brackets (F10, 2-piece slider) |

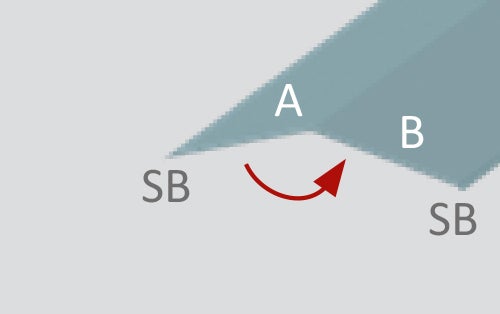

| Hip Cap | Dimensions | 330 x 330 |
|---|---|---|
 |
Angle | Calculation: 180° Roof Pitch (1.5 x Roof pitch) |
| Girth | 660 | |
| Use with | Blank closures notched + poly blocks |
| Drip Flashing | Dimensions | 110 x 60 x 25 x 35 |
|---|---|---|
 |
Angle | 95° |
| Girth | 231 | |
| Counter Flashing | Dimensions | SB 12 x 35 x 138 |
|---|---|---|
|
Angle | i) 157.5° ii) °88 |
| Girth | 185 | |
| Headwall Flashing | Dimensions | 94 x 368 |
|---|---|---|
 |
Angle | Calculation: 90° Roof Pitch |
| Girth | 462 | |
| Use with | Broad flute closures + poly closures and sliding brackets (F10, 2-piece slider) |
| Sidewall Flashing | Dimensions |
94 x 330 x 38 | SB² = 38mm at 90° 132 x 282 x 48 | SB² = 48mm at 90° |
|---|---|---|
 |
Angle | 90° |
| Girth | 462 | |
| Use with | Sliding brackets (F10 or clip-on) |

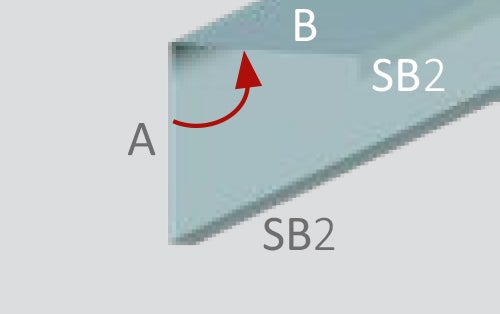

| Exernal Corner | Dimensions |
292 x 292 x 38 x 38 | SB² = 38mm at 90° 282 x 282 x 48 x 48 | SB² = 48mm at 90° |
|---|---|---|
 |
Angle | 90° |
| Girth | 660 | |

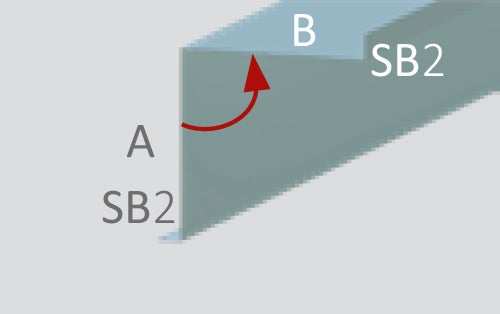

| Internal Corner | Dimensions |
292 x 292 x 38 x 38 | SB² = 38mm at 90° 282 x 282 x 48 x 48 | SB² = 48mm at 90° |
|---|---|---|
 |
Angle | 90° |
| Girth | 660 | |
| Valley Flashing | Dimensions | 330 x 330 |
|---|---|---|
 |
Angle | Calculation: 180° Roof Pitch (1.5 x Roof pitch) |
| Girth | 660 | |
| Use with | Stiffener bend at 158° angle |

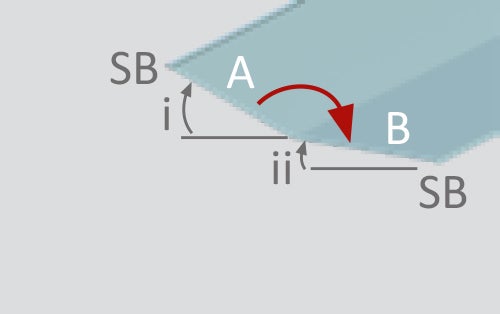

| Under-over Flashing | Dimensions | 330 x 330 |
|---|---|---|
 |
Angle | Calculation: 180° (i-ii) |
| Girth | 660 | |
| Use with | Sliding brackets (F10 or 2-piece slider) |
| Broad Flute Closure | ||
|---|---|---|
 |
Length | 705 |
| Recommendation | One closure per 2 roofsheets | |
| Broad Flute Closure | ||
|---|---|---|
 |
Length | 820 (2 x 410) |
| Recommendation | One closure per 2 roofsheets | |
| Broad Flute Closure | ||
|---|---|---|
 |
Angle | 466 |
| Recommendation | One closure per roofsheet | |
